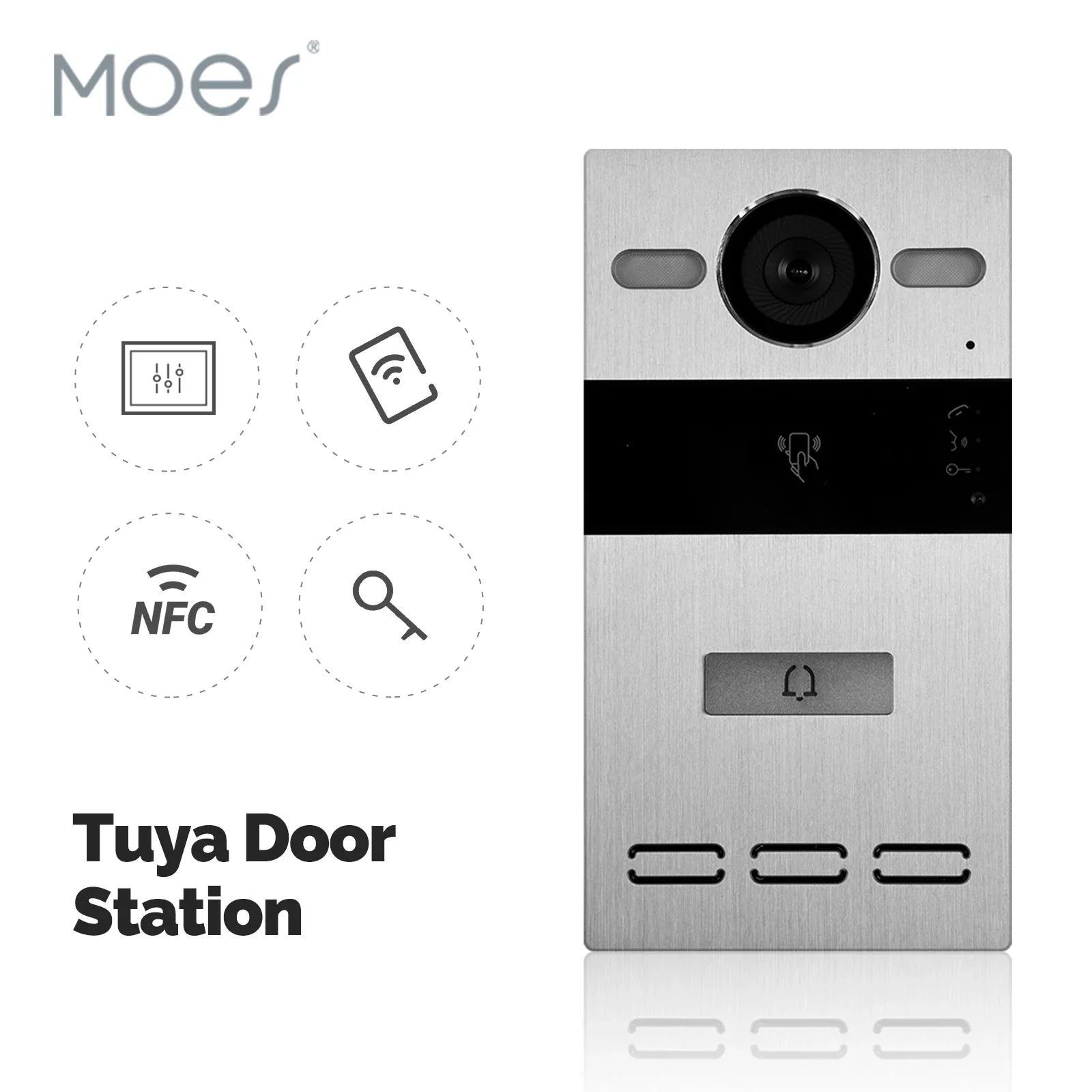

Tuya Door Station

As a doorbell: allows two-way free talk

Applicable door lock types

Work with door lock: multiple methods to unlock

Free video call through 2MP HD camera

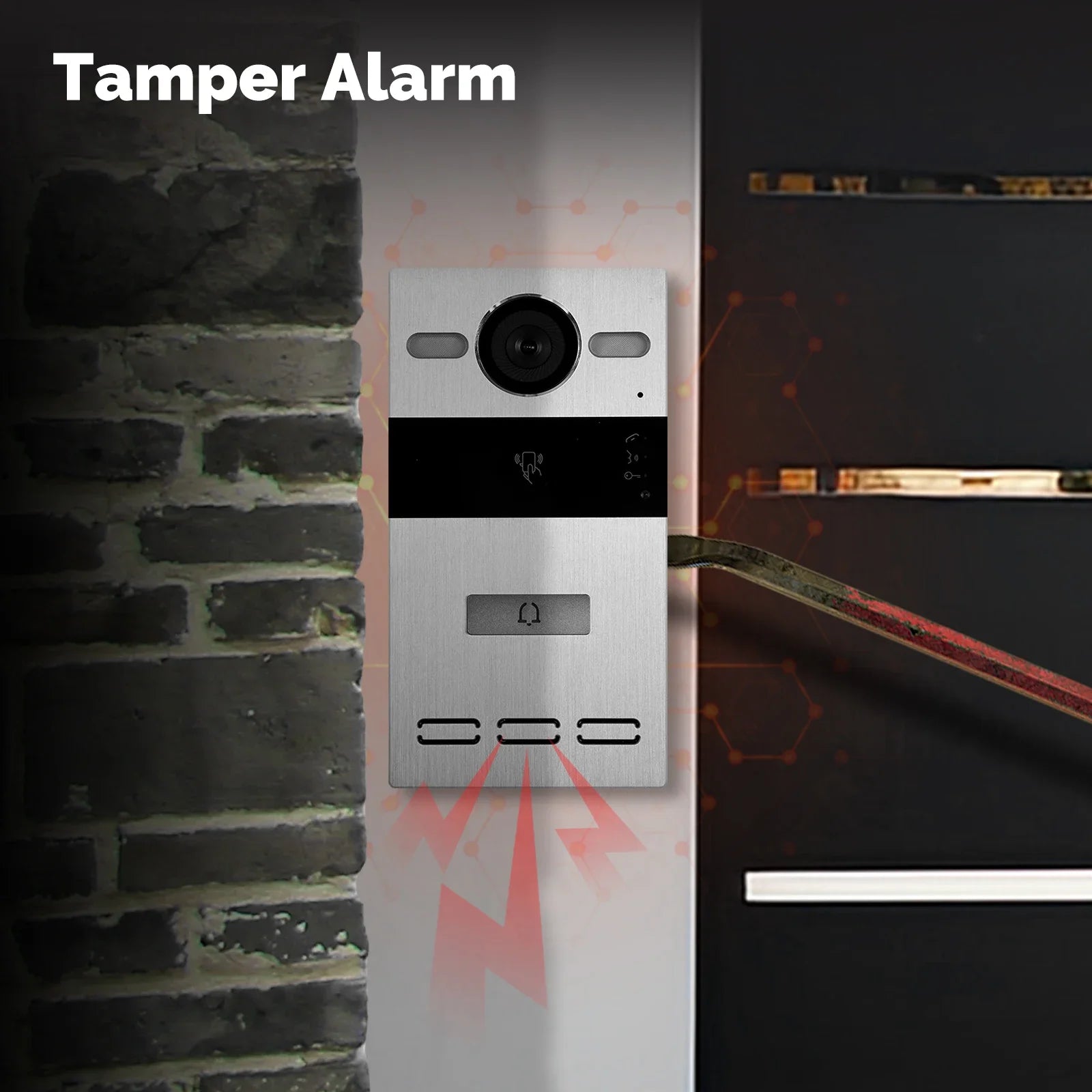

Tamper alarm

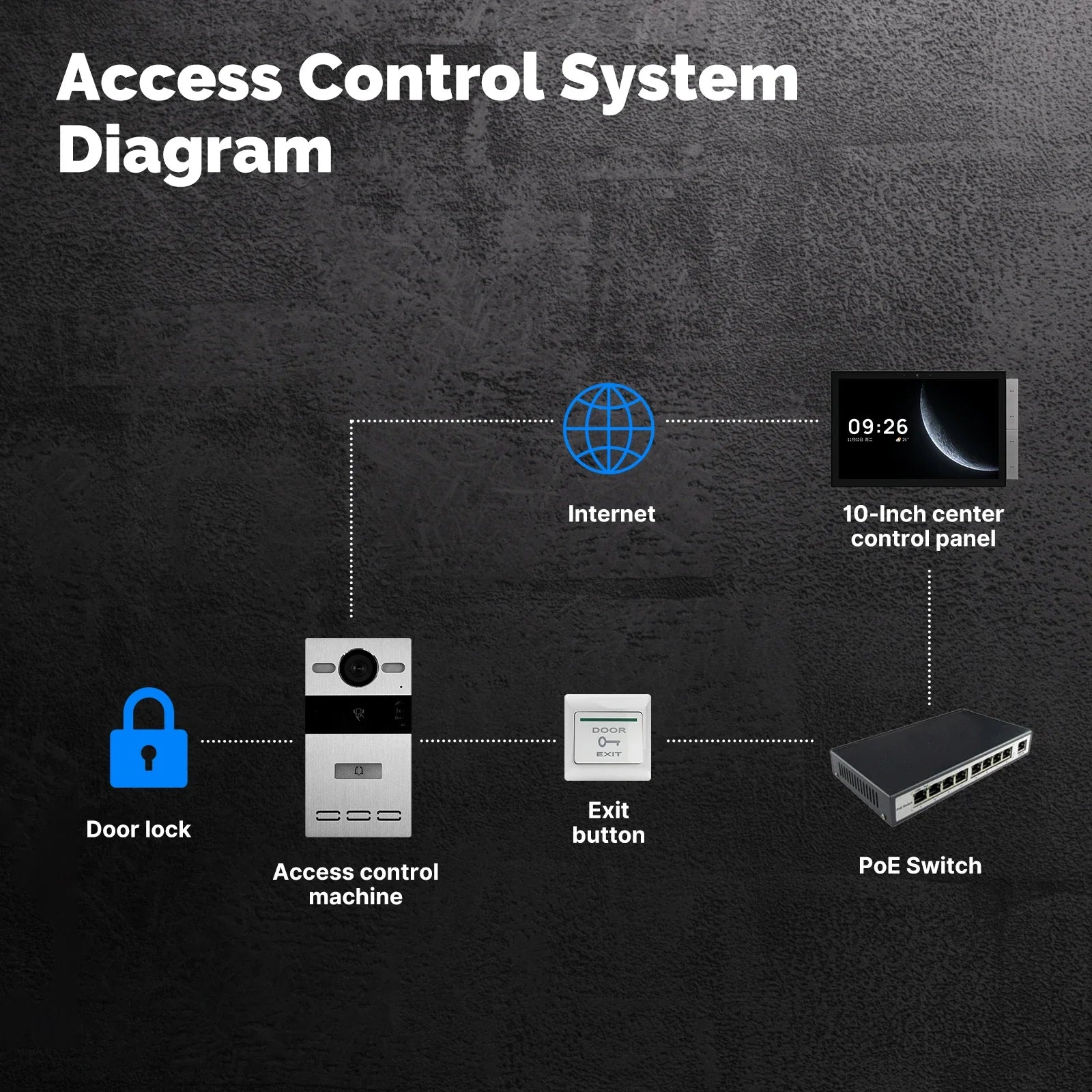

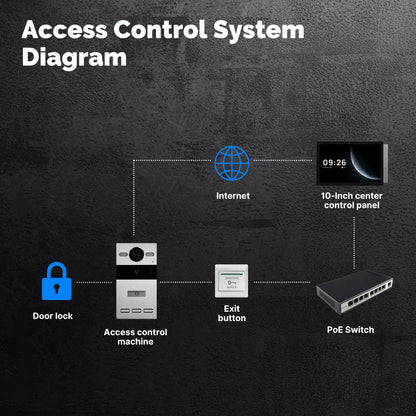

Access control system diagram

Note: Wiring require an integrator who knows weak current to operate.

Unlock through center contorl panel

Door station and Tuya 10.1 inch center control panel need to be in a LAN to be used together. Door station supports wired network, and the center control panel supports wired or wireless network.
Note: This function is available only through tuya 10.1-inch center control panel.

Unlock by IC cards

According to the instruction manual, match the IC card with the door station, you can open the lock through the IC card.

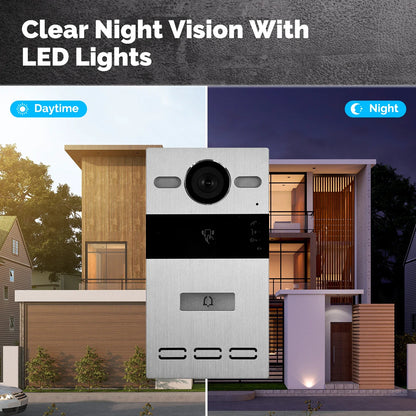

Clear night vision with LED lights

At night, the LED light beads with the access control will automatically light up, showing you a clearer image through the camera, guarding the family security day and night.

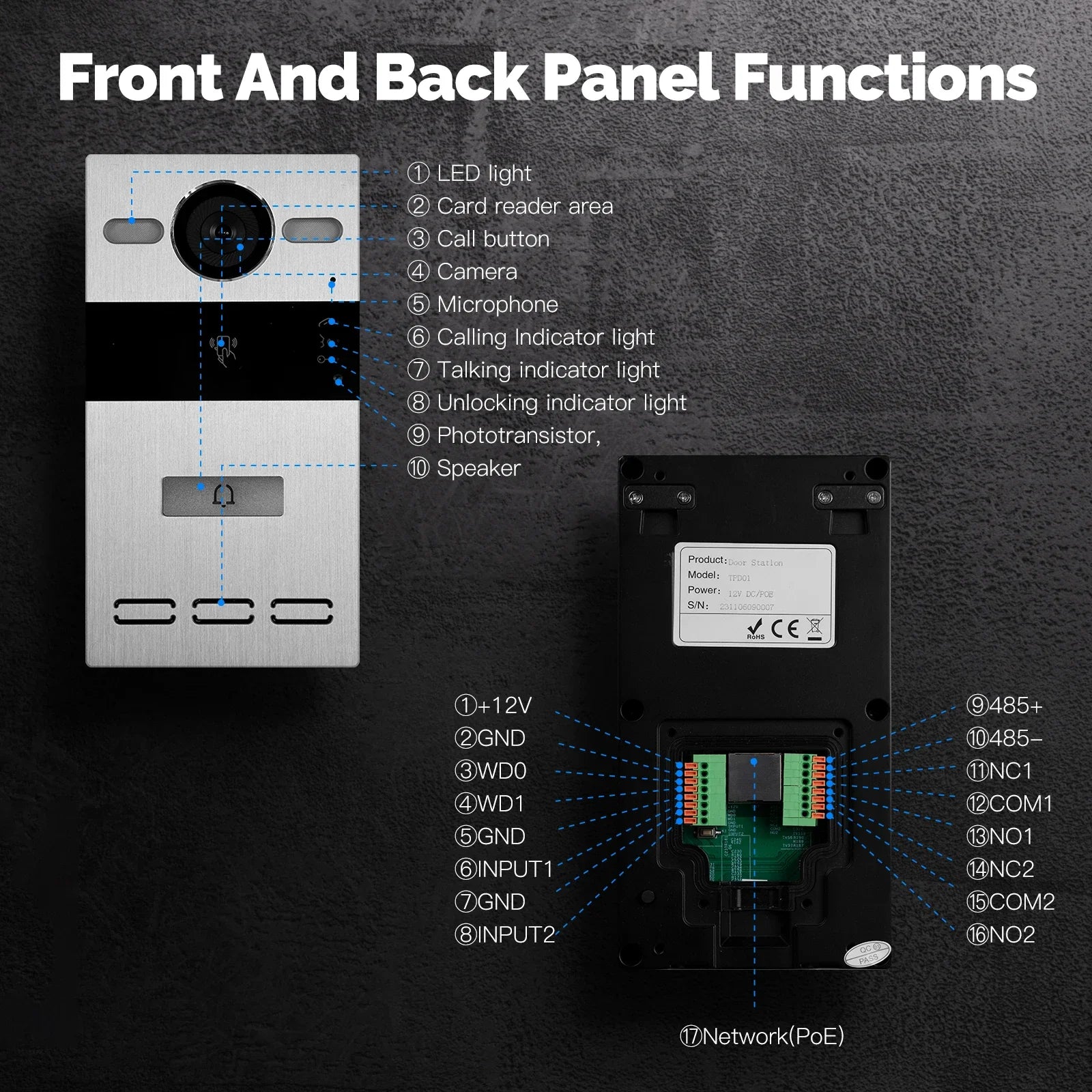

Front and back panel functions

According to the diagram and the instructions of the wiring board, the door station is connected to multiple devices, so as to establish a smart intercom system.

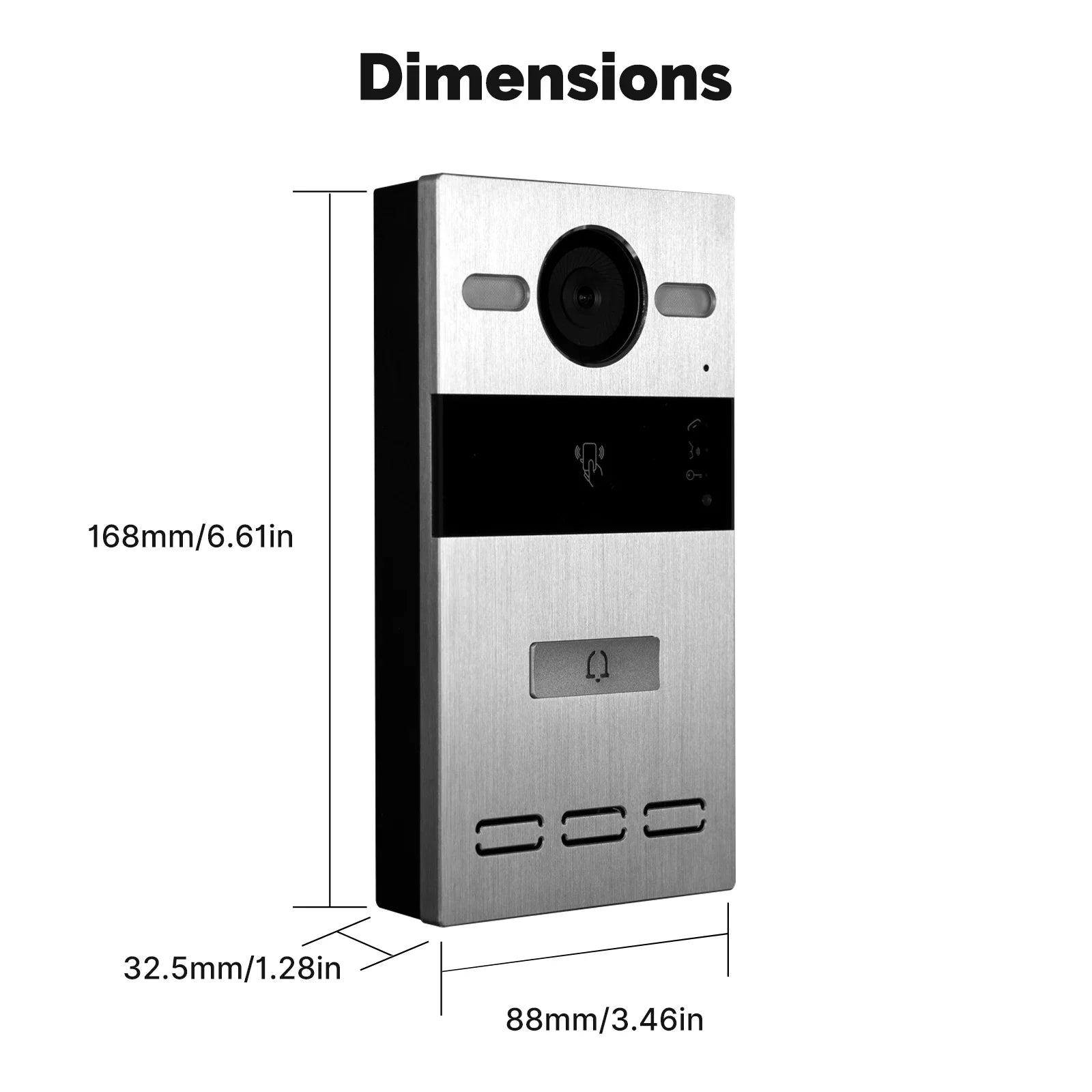

Dimensions

Technical Specifications:

System: Linux
RAM: 64 MB
ROM: 128 MB
Front Panel: Aluminum
Power Supply: PoE (802.3af) or DC 12V/2A
Standby Power: 1.5 W
Rated Power: 3.5 W

Camera: 2MP, CMOS
Indicator Light: 3
Wiegand Port: Support
Ethernet Port: 1 x RJ45, 10/100 Mbps adaptive

Door Entry: IC (13.56MHz) & ID (125kHz) card
Reset Button:1
RS485 Port: 1
Relay Out: 2
Input: 2
IP / IK Rating: IP65 / IK08
Installation: Surface Mounting
Surface Mounting DIM: 168 x 88 x 34 mm
Working Temperature: -40℃ to +55℃
Storage Temperature: -40℃ to +70℃
Working Humidity: 10% to 90% (non-condensing)

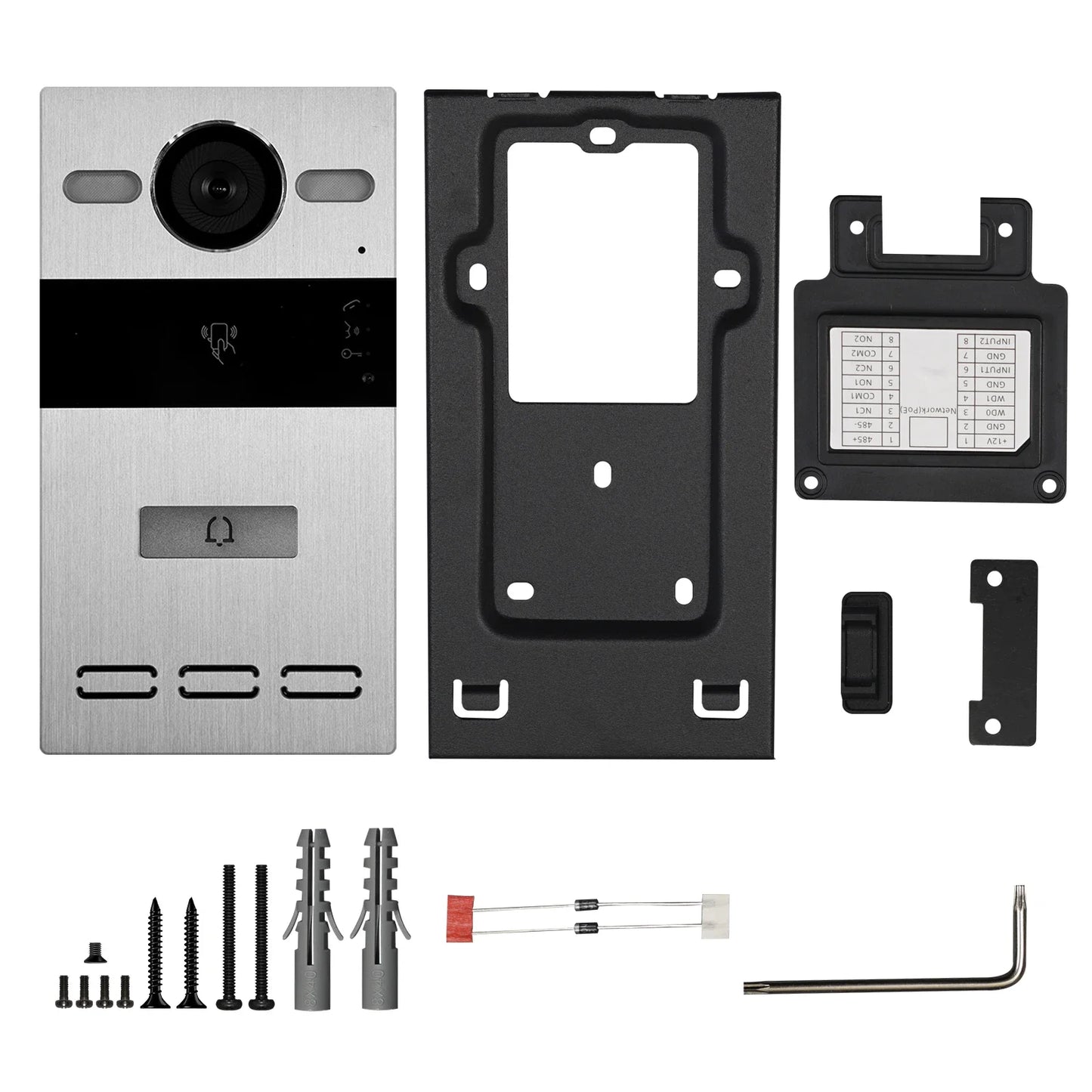

Packing List
1.TPD01 Kit
Door station *1
Rear cover *1
Screw set *1
Wiring cover *1
Wrench *1
Sealing plug of wiring port *1
Screw fixing seat *2
Junction pressing plate *1
Manual*1
2.TPD01-10.1-Inch EU
TPD01 Kit *1
10.1-Inch Center Control Panel(EU Version)*1

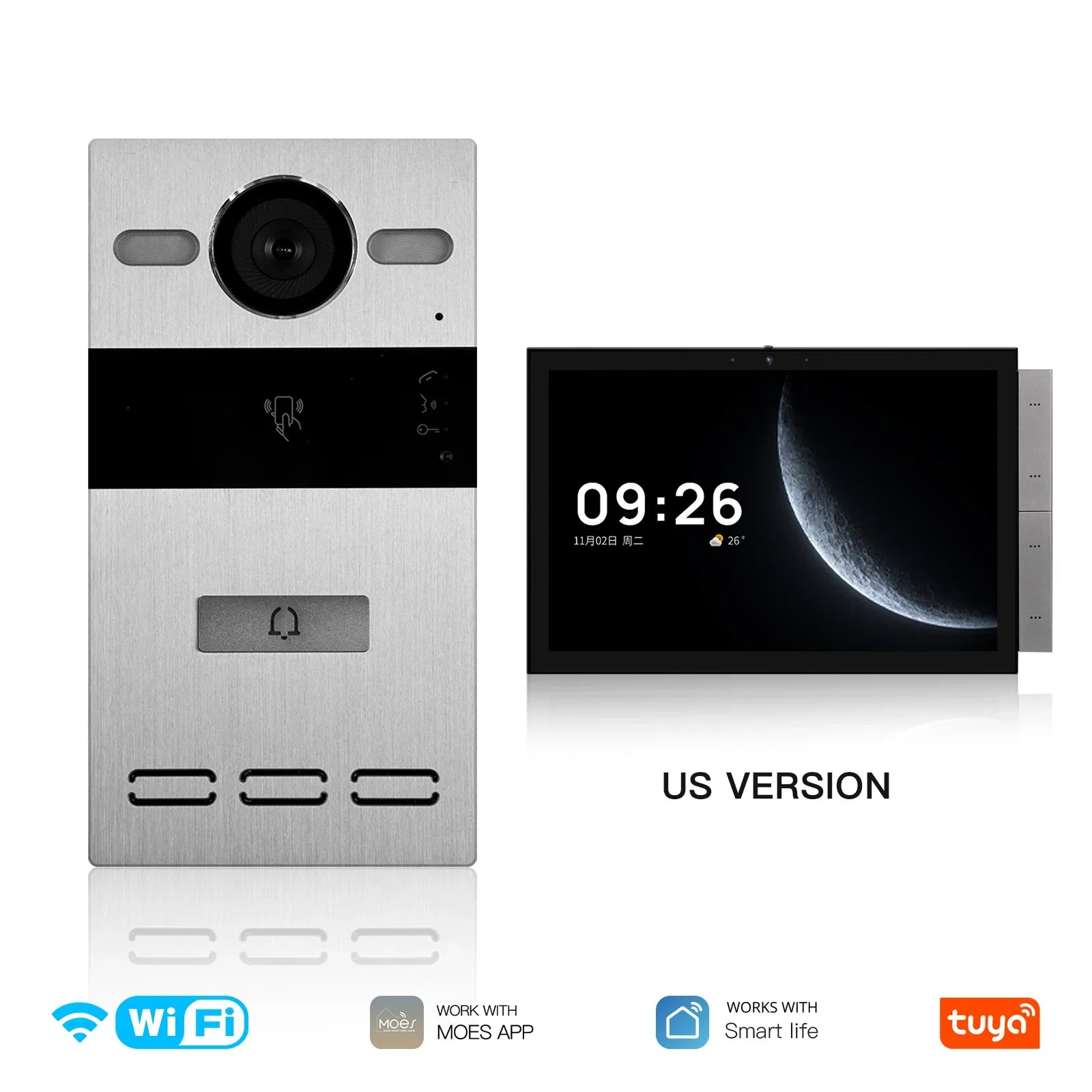

3.TPD01-10.1-Inch US
TPD01 Kit *1
10.1-Inch Center Control Panel(US Version)*1
